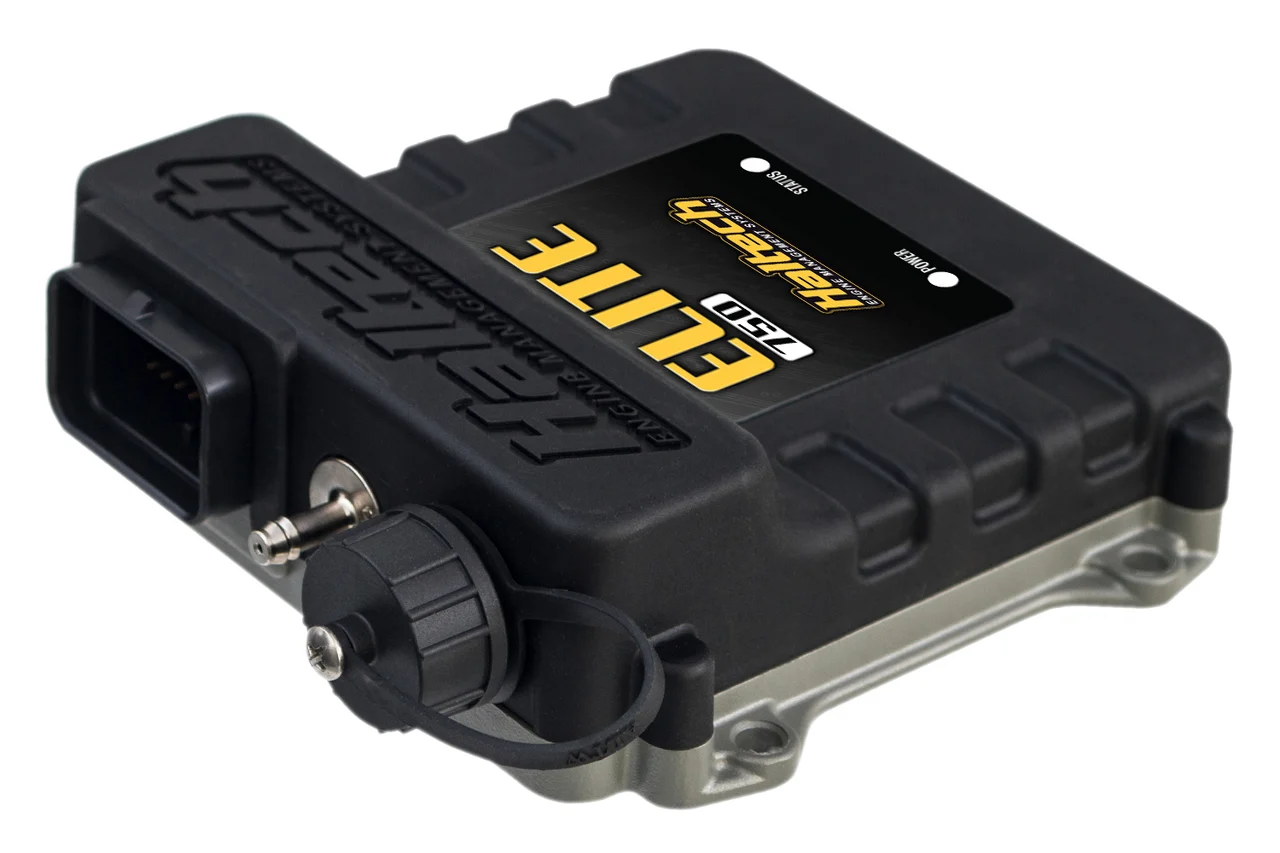

Haltech Elite 750

Description

ECU FUNCTIONS

• Low Impedance Injector control with Programmable Injector Peak and Hold
• Flex Fuel Function (Direct sensor input) – Tune your engines boost, fuel and ignition by ethanol content
• Flexible tuning setup for Petrol (Gasoline), Methanol and Ethanol allows you to simply select your fuel type E85 flex-fuel ready – direct connection to sensor
• Closed Loop O2 Control – for precise tuning (With optional external CAN O2 Wideband Controller Kit). Long-Term Learning
• Closed Loop Idle Speed Control with learning for consistent idle stability. Requires 1 or 2 user-defined outputs (BAC type)
• Long-term learning (Autotune) on fuel, cam & idle control maps (up to 3D)
• Laptop data logging -Data log all available channels directly to your laptops hard drive for both tuning and diagnostics
• CAN Bus communication for Haltech Dashes and expansion devices or OBDII (view live engine data & set and clear diagnostic trouble codes)
• 2 Injection Stages for use with Rotary Engines
• ECU comes fully enabled, no additional charges for advanced features.
• Variable cam control – Independently control a single camshaft – Requires a minimum of 1 user-defined input & output.
• Variable Cam Control supported for engines with a single cam sensor only, located on the variable cam. VVT Engines Supported – Toyota 1JZ/2JZ VVT, Toyota 1ZZ and 2ZZ, Mazda MX5 NB with VVT, Mazda / Ford Duratec, Suzuki M Series

ADVANCED TUNING

• Tuning Table Resolution up to 16 x 32
• Limitless tuning flexibility -Tune your engine by a combination of 3D tuning tables combined with 3D per cylinder compensations and multiple user definable corrections
• tune by a combination of manifold pressure, throttle position, cam position, ethanol content, gear, road speed, race time, EGT, shock travel, ride height or any channel for ultimate flexibility – Dual mapping is a thing of the past.
• Per Cylinder Tuning Correction – 3D
• Wideband O2 – Connect up to 2 Channels via CAN expansion devices
• Thermocouples/EGT (Exhaust Gas Temperature) – Connect up to 12 Channels via external CAN expansion devices
• Nitrous control with advanced programming of wet or dry nitrous kits with on/off delays.
• 3D fuel and ignition corrections available.
• Boost Control -Intelligent 3D Open loop, with flexible user-definable axis and 6 fully user definable corrections
• modes – example boost by gear, road speed etc.
