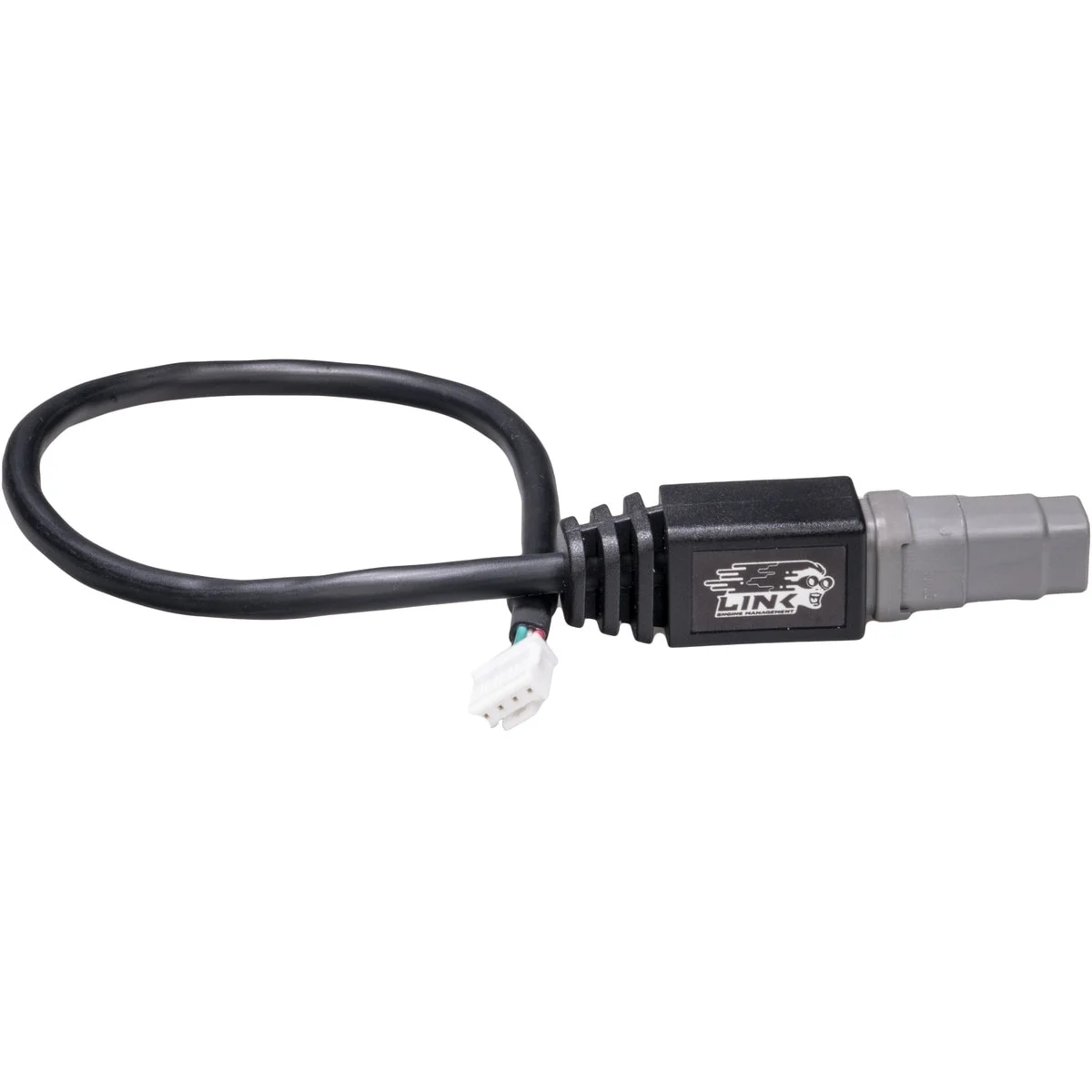

CANJST4 – CAN Connection Cable for Plugin ECU’s (4pin)

Description

Required to add CAN communications & power to recently released G4X Plugin ECU’s which have the new 4 Pin powered CAN connector (not the older 5pin CAN connector). Plugs directly into the socket on the ECU PCB, provides CAN and a protected 12V supply to allow easy connection of CAN accessories.

Suitable for powering a CAN Lambda, Dash, EGT amplifier or other similar low powered CAN devices which have a total continuous current draw of <3A.

Compatible PlugIns:

214-4100 – PlugIn ECU G4X Nissan GTR with E-Throttle
217-4100 – PlugIn ECU G4X Nissan S15 with E-Throttle
233-4000 – PlugIn ECU G4X Honda S2000 AP1
228-4000 – PlugIn ECU G4X Subaru WRX V5-6
237-4000 – PlugIn ECU G4X Honda HC20X Type-R DC5/RSX
238-4000 – Plugin ECU G4X Subaru WRX11
239-4000 – Plugin ECU G4X MX5NB2X
240-4000 – Plugin ECU G4X MX5NB1X
243-4000 – Plugin ECU G4X WRX11 USDM
241-4200 – G5 ECU Plug-In – Toyota GT86/Subaru BRZ LHD
241-4000 – G5 ECU Plug-In – Toyota GT86/Subaru BRZ RHD

Specs
DTM4 Male to JST4. 12V and GND Terminated to JST4. Length 300mm
DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
