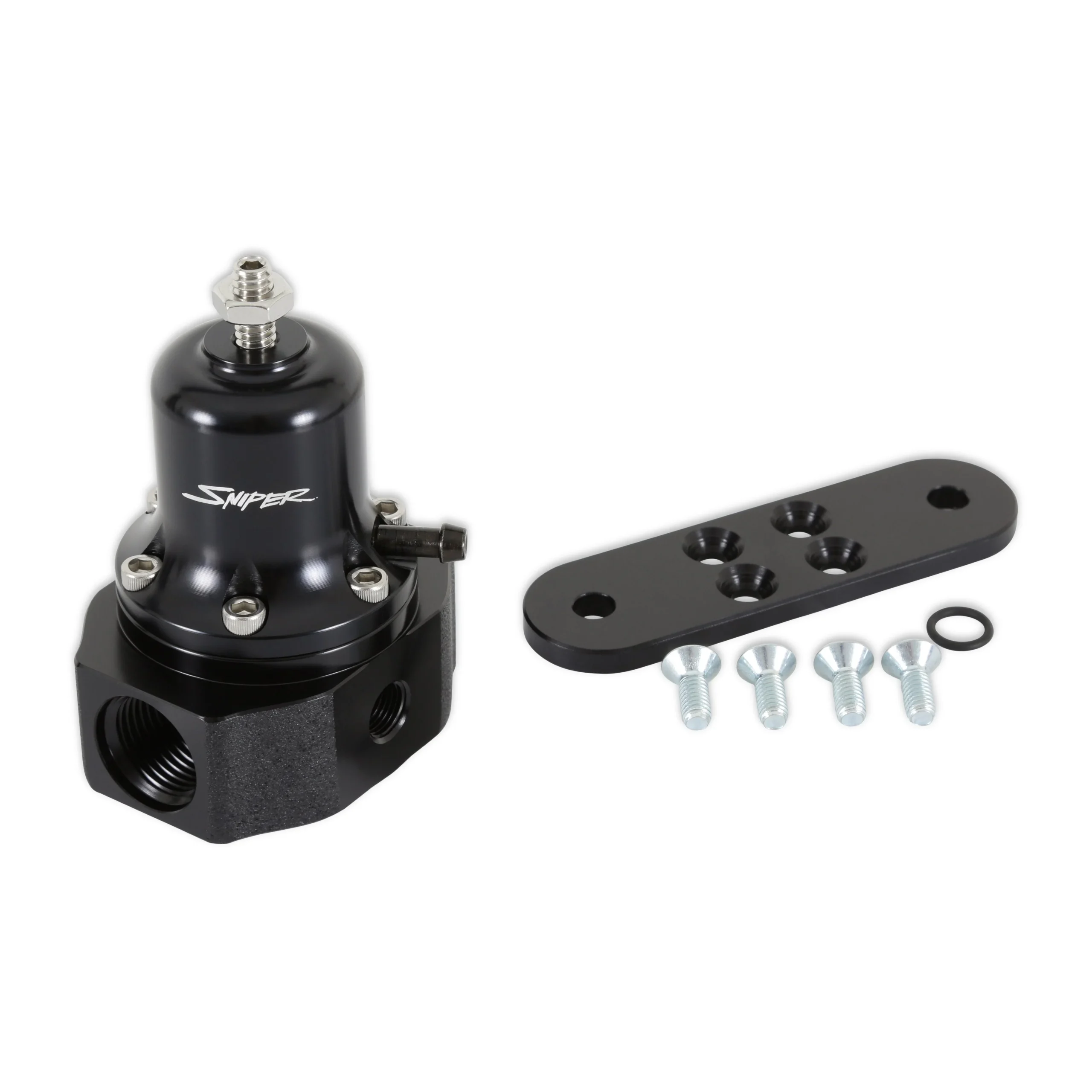

Sniper EFI Fuel Regulator 8AN

Description

Sniper EFI Fuel Regulator 8AN
Sniper EFI 40-130 psi Fuel Regulator 6AN Boost Reference 1:1
Overview
Sniper EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 40-130 psi, a gauge port, and a boost reference port as well. These regulators are ideal for vehicles/systems where superior flow and pressure control are needed. These regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks.
Features:

• Longer spring for wider range of adjustment (40-130 psi)
• Features an oversized bypass orifice and corrugated diaphragm for superior flow
• Constructed of billet aluminum with a black anodized base and top for good looks
• Offered in -6 and -8 ORB configurations
• Used in systems with a return line back to tank
• 1/8-inch NPT Boost Reference Port (Ratio 1:1)
• 1/8-inch NPT Fuel Gauge Port
• Alcohol fuel and race gas compatible
• Includes mounting bracket, hardware, and an 1/8-inch NPT barb fitting for manifold reference

Details:

• Fuel Type: Gasoline/Alcohol
• Style: Return Style
• Warranty: Limited 1 Year Warranty

Links
Instruction Sheet
