Description

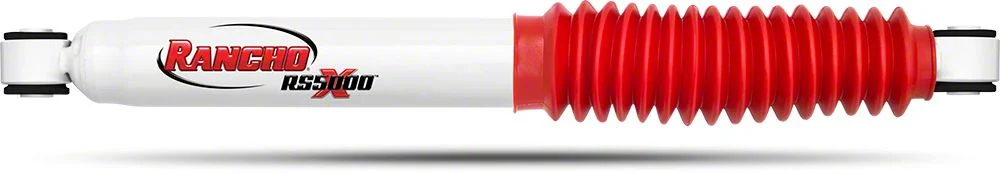

Advanced Shock Functionality. The Rancho RS5000X Rear Shock for Stock Height combines a unique valving system with advanced compression technology to enhance vehicle handling and performance on- and off-road. It is designed to reduce ride roughness and improve control during varied driving conditions while maintaining comfort.
Construction and Appearance. This shock absorber features a robust steel twin-tube body finished in white paint for durability and corrosion resistance. It includes a nitrocarburized 16mm piston rod designed to resist scuffs and corrosion, fitted with a 35mm sintered iron piston that provides increased structural strength. A polyvinyl protective boot safeguards the internal components, complemented by polyurethane rebound bumpers and rubber bushings to absorb harshness.
Installation. Installation of this shock absorber is straightforward and designed for direct replacement without requiring drilling or modifications. It can be installed by experienced enthusiasts or professionals with basic hand tools and mechanical knowledge.
Warranty. This shock comes with a limited lifetime warranty, providing assurance of long-term durability and performance reliability.
Application. Specifically engineered to fit 2019 through 2026 Sierra 1500 AT4 models, this shock is not compatible with vehicles equipped with adaptive control suspension systems.
Rancho RS55269
CA Residents: WARNING: Cancer and Reproductive Harm
- Features a unique, exclusive valving system and advanced compression functionality
- Delivers improved overall on- and off-road handling and performance
- Cross-tuned technology featuring exclusive rebound valving system and advanced compression phase
- Minimizes rough ride with progressive engagement valving custom-tuned for each vehicle
- Sturdy 16mm nitrocarburized piston rod resistant to scuffs and corrosion
- Double-welded loops at stress areas and 35mm sintered iron piston for enhanced structural integrity
- Includes polyvinyl protective boot
- Large twin-tube body filled with all-weather fluid to handle temperatures from -40 to 248°F
- Polyurethane rebound bumper and rubber bushings absorb ride harshness
- Fluon-banded piston enhances responsiveness to road conditions
- Nitrogen gas pressurized to 150 PSI to reduce damping fade and foaming
- Custom-tuned compression control valve regulates fluid transfer to absorb impacts without disc flutter
- Low-friction, self-lubricating seal retains gas and oil for faster rebound and smooth compression
- Application-specific piston with expanded area delivers enhanced shock motion control
- Comes with limited lifetime warranty
- Shock length extended to 27.59 inches, shock stroke 10.78 inches
- Loop bushing and sleeve mounts for upper and lower ends
- Body diameter 2.25 inches, rod diameter 0.622 inches
- Shock absorber rod and body measuring points at loop center
- Twin-tube internal construction with progressive valving
- No coil springs included, no adjustable features
- Painted white finish on steel body and nitrocarburized shaft
- Includes rubber dust shield without bearing plate
- Passive suspension type with no self-leveling or hydraulic lockout
- Fits 2019-2026 Sierra 1500 AT4 excluding models with adaptive control suspension
| Brand | Rancho |
| Shock Type | Non-Adjustable |
| Shock Lift Height | 0-Inch Lift |
