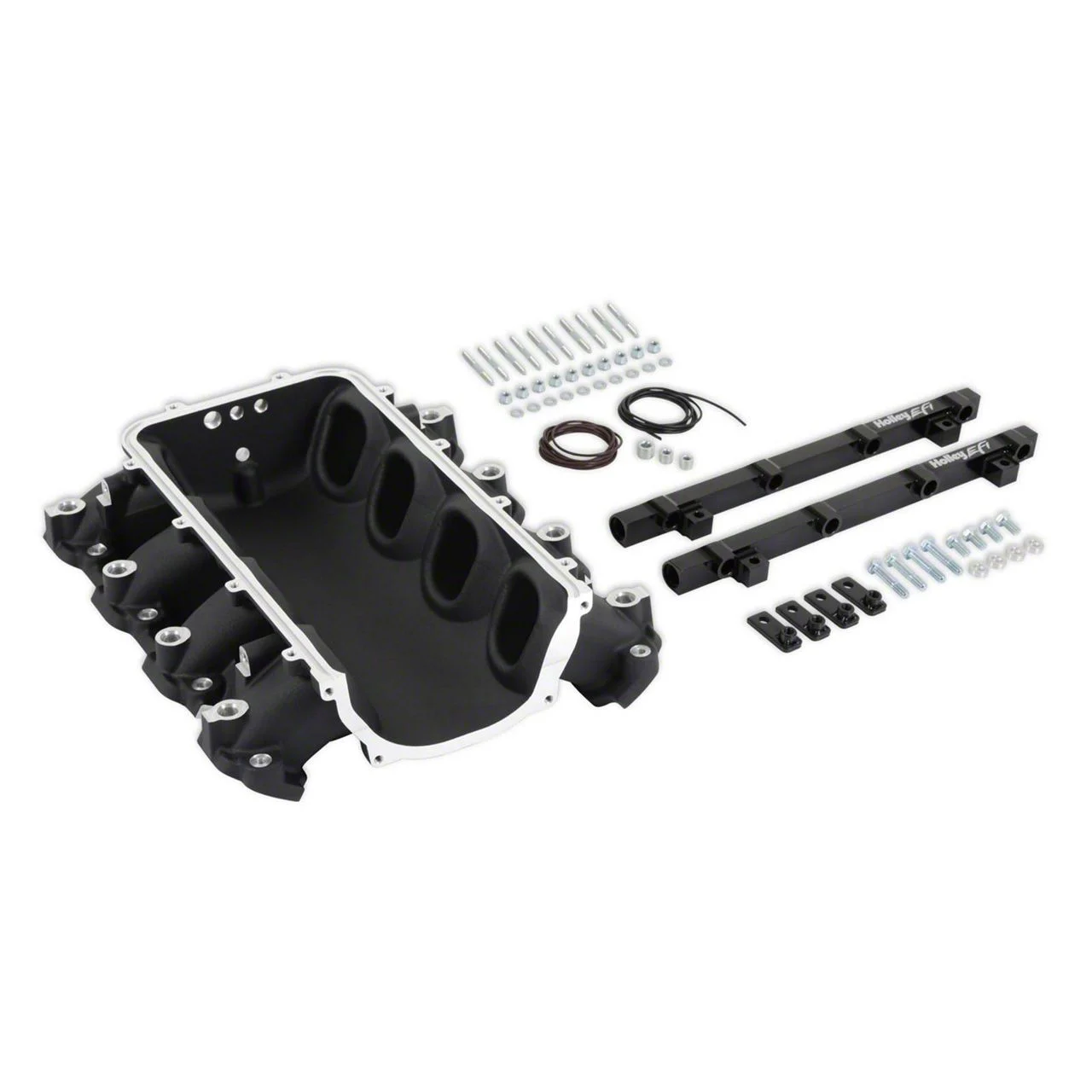

Holley EFI Ultra Lo-Ram Intake Manifold Base and Port Injection Fuel Rails; Black (16-24 Camaro LT1, SS)

Description

Performance Intake Solution. The Holley EFI Ultra Lo-Ram Intake Manifold Base and Port Injection Fuel Rails in Black are engineered to optimize airflow and fuel delivery specifically for high-performance GM Gen V LT engines equipped with LT cylinder heads. This manifold is designed for forced induction setups such as supercharged or turbocharged engines, supporting peak power output between 7,000 and 8,000 rpm. It delivers an efficient air-fuel mixture for improved engine output and throttle response.

Construction and Appearance. Crafted from durable as-cast aluminum, this intake manifold features a black powder coat finish that provides both protection and a sleek look. Its low-profile modular design includes a front entry plenum flange with fabrication flanges allowing custom throttle body adapter or inlet duct installations. The overall reduced height facilitates installation under stock or mildly modified hoods without clearance issues.

Installation. Installation aligns with OEM mounting points and does not require drilling. It is compatible with OE or aftermarket cylinder heads and supports port fuel injection setups, including high-volume fuel rails designed to accommodate both standard and short fuel injectors. The modular design allows for optional plenum tops and throttle body adapters sold separately.

Warranty. Covered by a manufacturer’s limited 90-day warranty for parts and workmanship.

Application. Fits 2016 to 2024 Camaro LT1 and SS models. This manifold is legal for use only on uncontrolled (non-emissions controlled) vehicles.

Holley EFI 300-713BK

CA Residents: WARNING: Cancer and Reproductive Harm

• Holley GM Gen V LT Ultra Lo-Ram Intake Manifold Kits Are For GM Gen V LT Engines Equipped With GM LT Cylinder Heads
• Designed To Work With OE Or Aftermarket Cylinder Heads
• Intake Manifolds Built For Forced Induction Applications Including Supercharged Or Turbocharged Engines
• Peak Power Band At 7,000-8,000 Rpm Depending On Application
• Front Entry Throttle Body Flange Has A 105mm Opening Compatible With Throttle Body Part Number 112-581 Or Similar
• Lower Overall Height For Fitment Under Stock Or Mildly Modified Hood
• Very Low-Profile Modular Intake Manifold With Fabrication Flanges For Custom Throttle Body Adapters Or Inlet Ducts
• Available With Port Fuel Injection Provisions
• High Volume -8AN Fuel Rail Kit Included With Port Injection Option, Accommodates Standard Or Short Fuel Injectors
• Only 0.97-Inch Taller Than Factory LT1 Manifold Offering Maximum Clearance
• Clears C7 Corvette Cowls And Hoods Without Modification
• Manufactured From As-Cast Aluminum, Offered In Black Powder Coat Finish
• Kits Available With Burst Panel Flange; Billet Burst Panel Duct Sold Separately
• Compatible With 105mm Diameter OEM 4-Bolt LS/LT DBW Or Holley LS/LT Throttle Bodies
• Modular Design Includes Base Manifold; Plenum Top And Throttle Body Adapter Sold Separately
• Emissions Legal For Use On Uncontrolled (Non-Emissions Controlled) Vehicles Only
• Fits 16-24 Camaro LT1, SS Models
