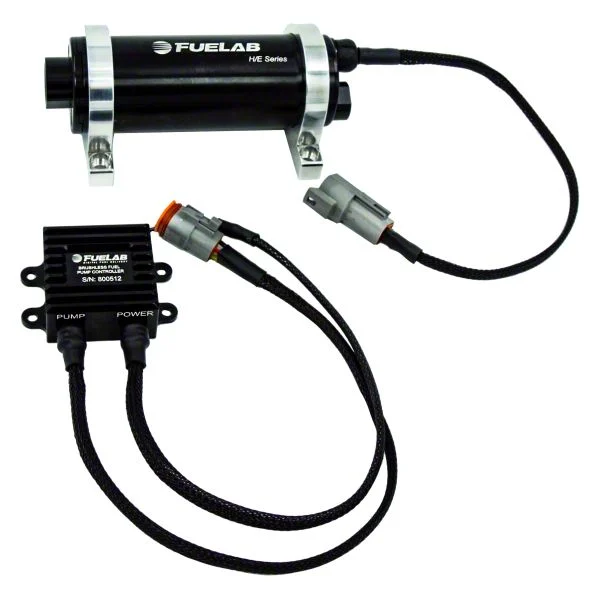

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 300 LPH (Universal; Some Adaptation May Be Required)

Description

High Performance Fuel Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump (-8AN; 300 LPH) is engineered to deliver reliable and precise fuel flow for high-performance engines up to 625 horsepower. Suitable for both street and strip applications, it offers superior priming capabilities and enhanced resistance to vapor lock. This pump supports a wide range of fuels including gasoline, diesel, methanol, and ethanol, providing versatility for diverse setups.

Construction and Appearance. Manufactured from billet aluminum with a MIL-A-8625 Type II anodize finish, the pump ensures durability and corrosion resistance. Its compact, lightweight design weighs less than 3 pounds, measuring 7.13 inches in length and 2.0 inches in diameter. The use of fluorosilicone static seals guarantees long service life and compatibility with multiple fuel types.

Installation. Installation is simplified with included billet aluminum mounting brackets and compatibility with both standard and port style -8AN fittings. The design supports straightforward professional or experienced DIY installations without requiring complex modifications.

Warranty. This fuel pump is backed by a limited lifetime warranty, providing assurance of product longevity and dependable support.
Application. Fits universal; some adaptation may be required.

Fuelab 47411

CA Residents: WARNING: Cancer and Reproductive Harm

• High Efficiency EFI In Line Fuel Pump Rated Up To 625HP Street/Strip Twin Screw DC Brushless Driven Fuel Pump
• Limited Lifetime Warranty
• 300 LPH At 45PSI 125PSI Max 13.5V
• Compatible With Gasoline, Diesel, Methanol, And Ethanol
• Twin Screw Rotor Pumping Mechanism
• 125PSI Max Operating Pressure
• 625HP Power Support At Continuous Speed
• Higher Efficiency Means Less Current Draw And Less Noise
• Superior Priming Capabilities
• Greater Resistance To Cavitation Vapor Lock
• Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw
• Powerful High Flux Density Neodymium Rare Earth Magnets
• No Motor Brushes To Wear Out Or Corrode; Low-Sulfur Diesel Compatible
• Wet Motor Design Eliminates Dynamic Shaft Seals That Can Wear Out
• 12 To 16 Volt Vehicle Electrical System Compatibility
• Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control
• Continuous Duty Motor Speed
• Compact Lightweight Design Less Than 3lbs Overall Length 7.13″, Diameter 2.0″
• Billet Aluminum Construction With MIL-A-8625 Type II Anodize
• Includes Two Billet Aluminum Mounting Brackets
• Long Life Multi-Fuel Compatible Fluorosilicone Static Seals
• Accepts Standard Or Port Style -8AN Fittings
• Fits Universal; Some Adaptation May Be Required
