Aeromotive VaporWorx Intelligent Controller; Single Channel (Universal; Some Adaptation May Be Required)

Description

Intelligent Fuel Pump Controller. The VaporWorx Intelligent Controller; Single Channel precisely manages up to 25 amps of 12V DC negative ground power, delivering advanced safety and operational features beyond conventional relay controls. It is designed primarily for carbureted vehicles employing electric fuel and intercooler pumps, enhancing fuel system safety and performance through protective functions and manual overrides.

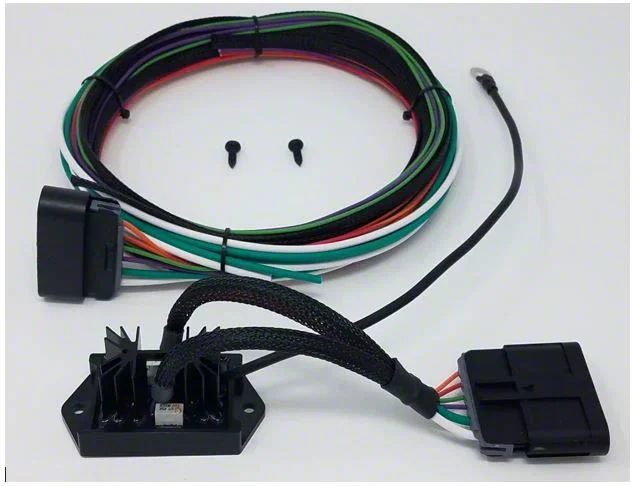

Construction And Appearance. This controller boasts robust construction with XLPE wires and a sealed Delphi GT280 connector to ensure reliable sealing and connection integrity. The inclusion of U.L. 94 rated components reflects high manufacturing standards, and all wiring is pre-terminated with heavy-gauge ground leads. It is assembled domestically in the USA, emphasizing quality and durability.

Installation. Installation is straightforward for those with basic automotive electrical knowledge, requiring no drilling or complex modifications. It can seamlessly replace existing traditional relay setups or fit into new fuel system installations with minimal effort.

Warranty. Comes with a one-year limited warranty from the date of purchase, providing coverage against manufacturing defects.

Application. Fits universal applications with some adaptation necessary to accommodate specific vehicle wiring and pump arrangements.

Aeromotive 66706

CA Residents: WARNING: Cancer and Reproductive Harm

• Modern Safety And Convenience Features For 12V Dc Negative Ground Power
• Supports Up To 25A Per Channel Output
• Output Short Circuit Protection To Shut Down Power In Case Of Wiring Or Pump Shorts
• Three Second Prime Cycle At Initial Key-On To Prevent Pump Running When Engine Is Off
• Accident Safety Feature That Shuts Down Power When Engine Tach Signal Goes To Zero
• Manual Override For Tuning With Ignition On/Engine Off
• Manual Override For Intercooler Pumps With Key-Off/Engine Off
• Includes Xlpe Wire, Sealed Delphi Gt280 Connector, And Wire Braid
• Six Feet Of 12 Gauge Wire Included For Pump Circuit
• Made In USA Using U.L. 94 Rated Components
• Pre-Terminated Heavy-Gauge Ground Input Wiring Switching Ground Input To Pump
• Conservative Power Rating Limited By Connector Not Electronics, Supports Up To 36A
• Fits Universal; Some Adaptation May Be Required
